Quality Bimetal Panel Clad with Copper or Stainless Steel

Alucobest Bimetal composite panel formed in a continuous process using adhesives between two layer metal sheets ,overall thickness 0.7-3mm, which is a durable, high impact resistant, solid panel which can be curved and rolled. It is similar to traditional composite panel, however what makes it different is the fact that it is constructed from 100% metal.

Alucobest Bimetal composite panel not only combines with the original characteristics of the metal but also improves the product’s strength, flatness, shock absorption, noise reduction, and heat insulation, tec.

Send email to us

Details

Alucobest Bimetal composite panel is an ideal cladding solution for public projects such as schools and hospitals as it is high impact resistant

Common Bimetal composite panel include

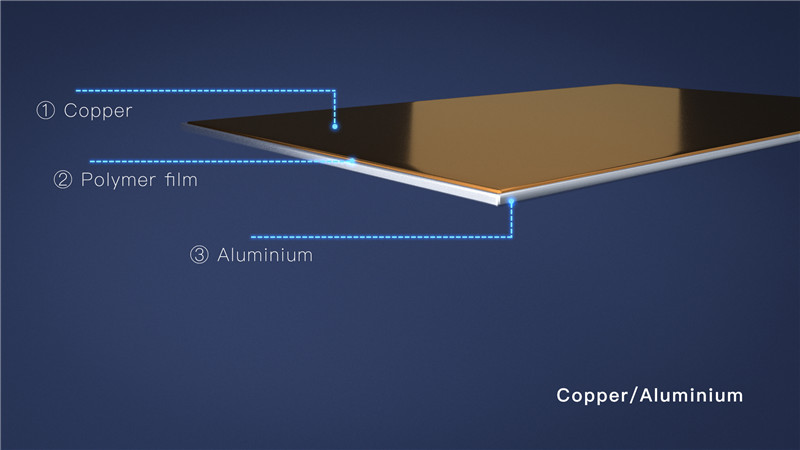

Copper/aluminum Bimetal composite panel

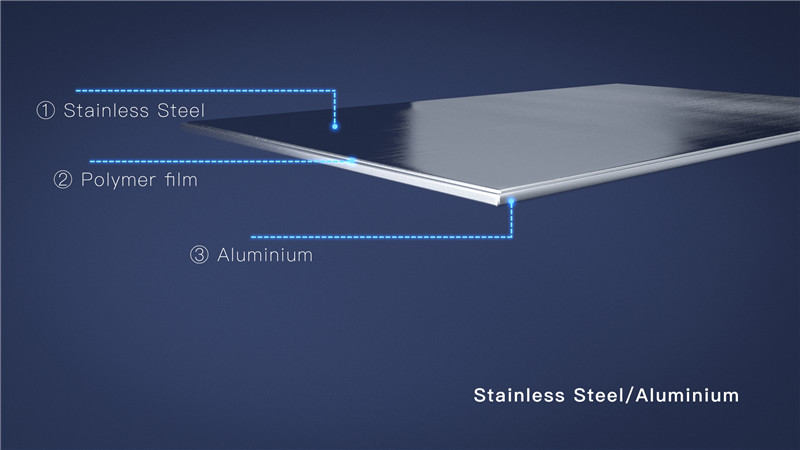

Stainless steel/aluminum Bimetal composite panel

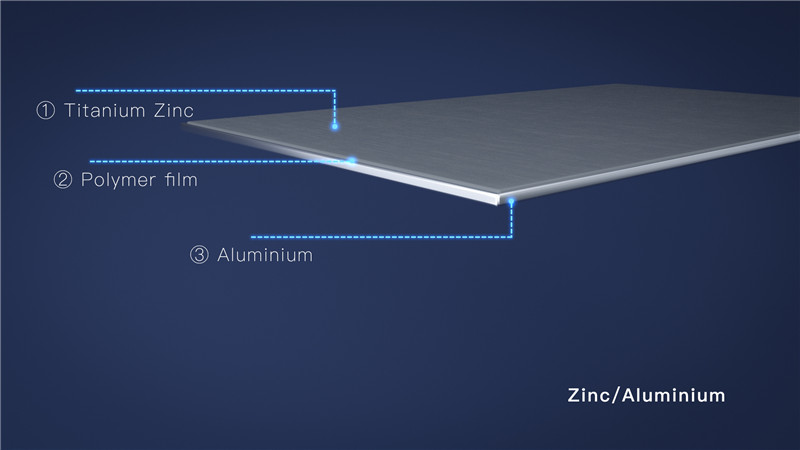

Zinc/aluminum Bimetal composite panel

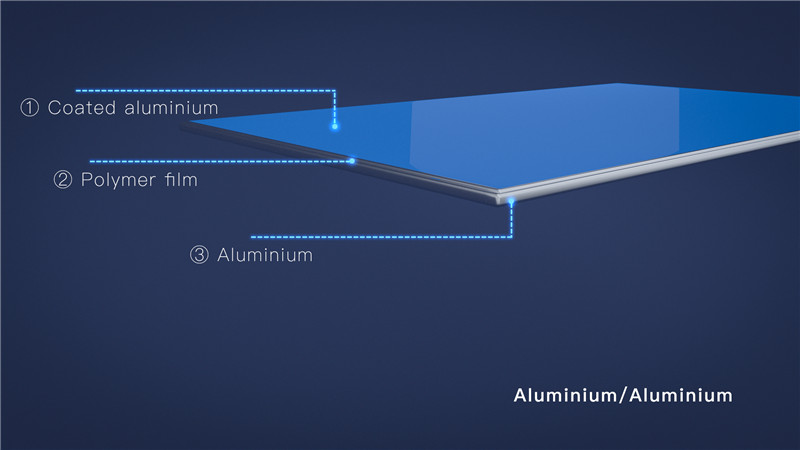

Aluminum//aluminum Bimetal composite panel

copper/aluminum

stainless steel/ aluminum

zinc/aluminum

aluminum/aluminum

copper/aluminum

stainless steel/ aluminum

zinc/aluminum

aluminum/aluminum

Standard Specification for Building:

Panel	Surface Metal	Metal THK	Width	Finish	Application
1.5mm	Stainless Steel	0.25mm	1220mm	Hairline,Mirror	Elevator, Building
2.0mm	Stainless Steel	0.25mm	1220mm	Hairline,Mirror	Building
2.0mm	Copper/Brass	0.55mm	1000mm	Nature, Design	Building
2.5mm	Copper/Brass	0.55mm	1000mm	Nature, Design	Building
CUSTOM SPECIFICATION AND SIZES ARE ALSO AVAILABLE.

Key Advantages：

• Design flexibility

• Lightweight

• Cost effective product

• Good sound insulation

• Good heat insulation

• Non-combustible Class A2

Application:

Stainless steel/aluminum Bimetal composite panel: elevator car, escalators, transport box, refrigerator, washing machine, smoke absorber shell, revolving door, cabinet panels, table face, basins, food factory and health care industry decorative panels. The palte can be used directly to replace most of the sectors of pure stainless steel, significantly reducing manufacturing costs.

Copper/aluminum Bimetal composite panel: metal roofs, gutter, down pipe, ceilings, blinds, cab, cabinets and so on. Customers also can make surface processing and press pattern on the plate.
